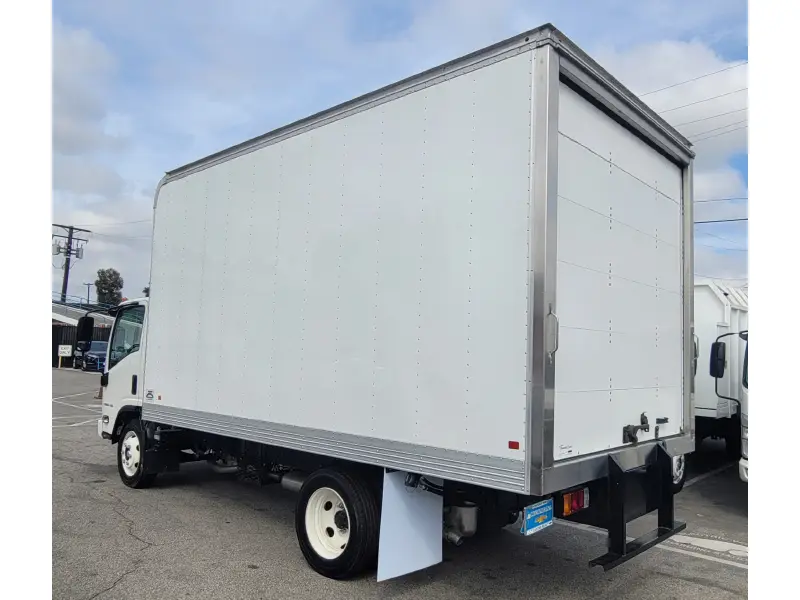

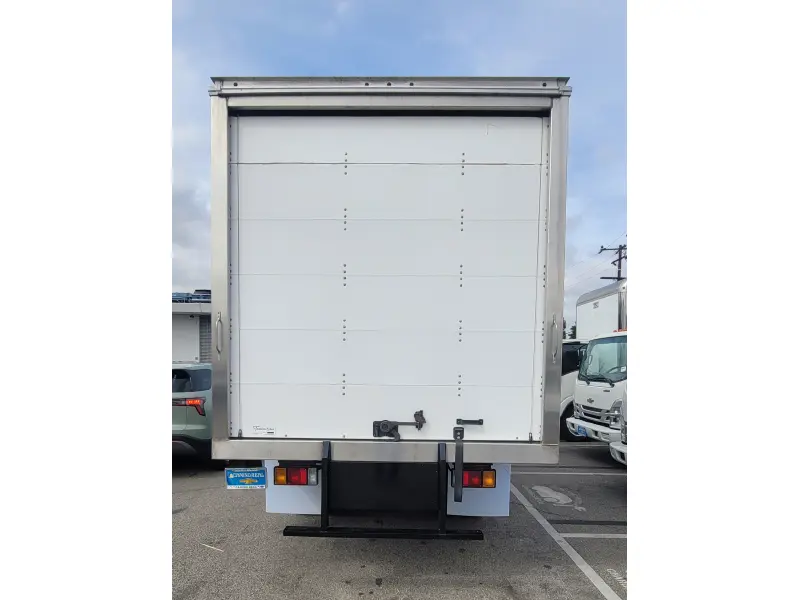

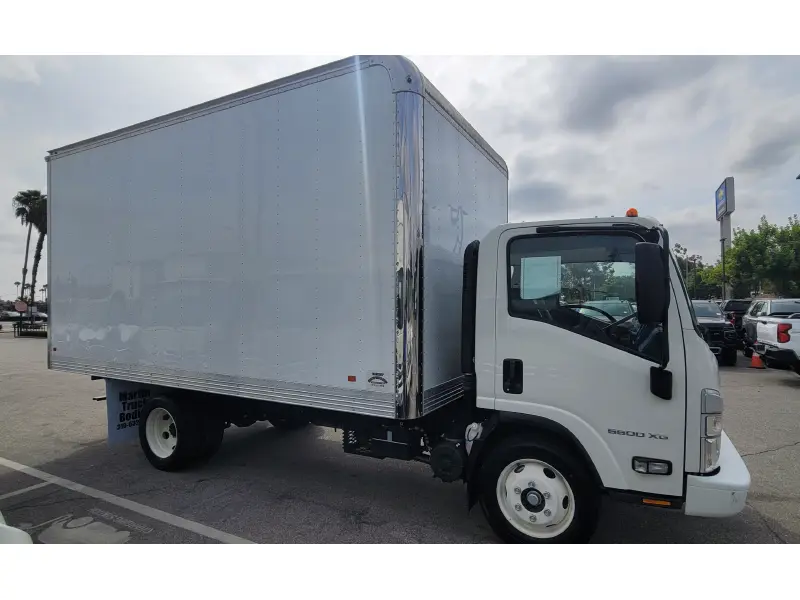

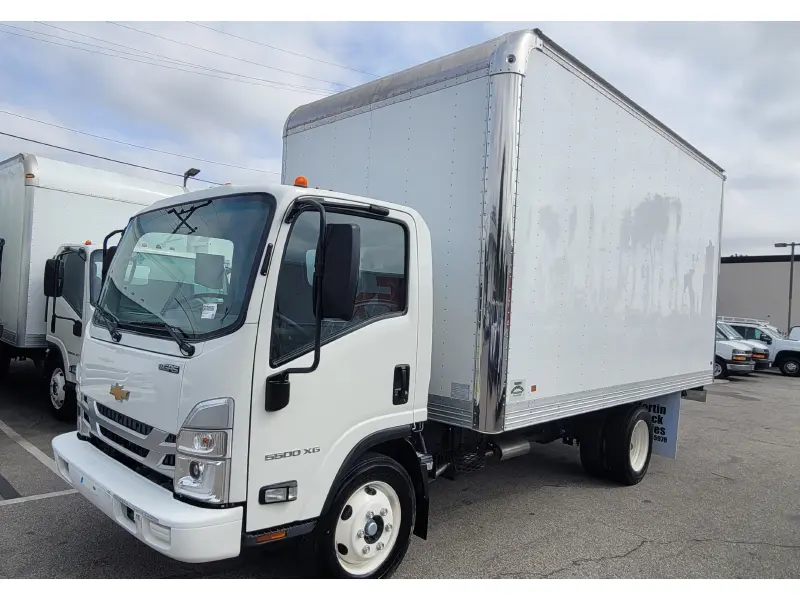

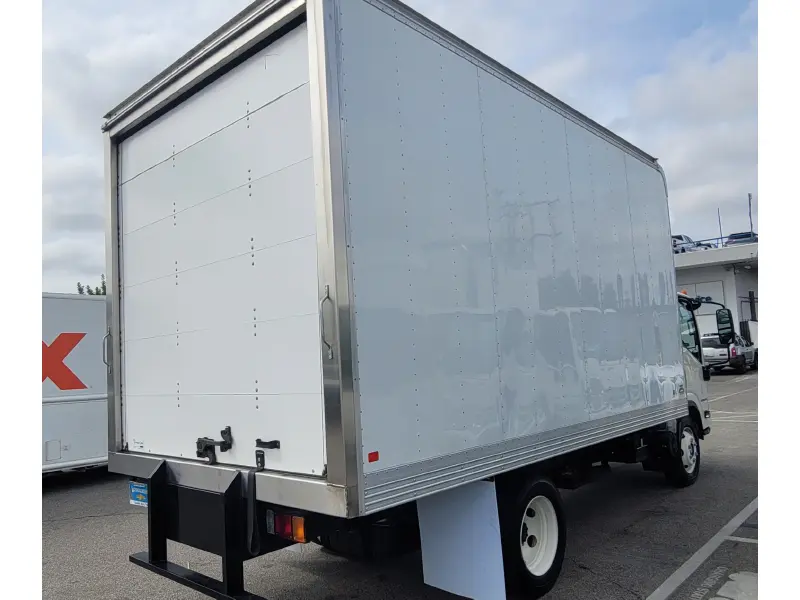

2025 CHEVROLET 5500XG
Was
$87,540
New
New
New
New
New
New
New
New
New
New
New
New
Quick Inquiry
Key Features and Details
- Stock NumberSSR00927
- CategoryBox Truck - Straight Truck
- ConditionNew
- Mileage37 Mi
- Cab TypeSTANDARD CAB
- Fuel TypeGasoline
- Drive TrainRear Wheel Drive
- VIN54DEEW1D9SSR00927
Dealer Comments
PLEASE CONTACT “MAX FERNANDEZ” 323-859-8717 or CELL 323-270-6807. You can also text or email me for Questions or Concerns at max@caminorealchevrolet.com
RWD | Naturally Aspirated | 6.6L V8 | 6.6L | 8 | GAS |
Regular Chassis | Truck/Van | 2
5500XG LCF Gas / CP63003-150" Wheelbase, Reg. Cab

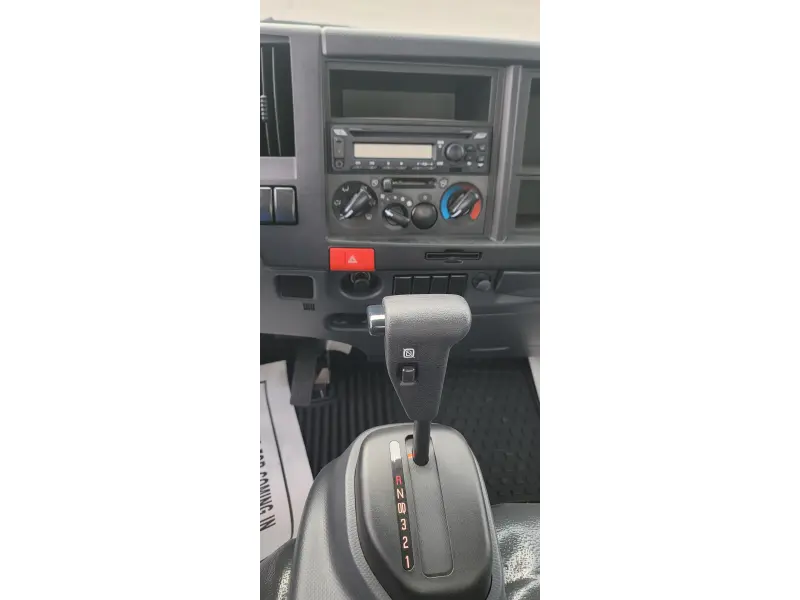

TRANSMISSION AUTO 6 SPD, ALLISON, LCT 1000, 3.10 1ST, .71 5TH .62 6TH, O/D, CONV CLUTCH
- Audio system feature, 2 speakers
- Rear suspension, 14,550 lbs. (6600 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Tires, front, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Vehicle Application Truck
- Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat (STD)
- Lighting, interior dome
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Steering wheel, urethane
- Drivetrain, rear-wheel drive
- Windows, power
- Tires, rear, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Exhaust, single outlet
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth (STD)
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- LED Headlamps
- Front axle, 7275 lbs. (3300 kg), reverse Elliot "I"-beam
- Assist steps
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Wheelbase, 150" (381.0 cm)
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm). (STD)
- Wheels, 19.5" x 6", steel (STD)
- GVWR, 19,500 lbs. (8845 kg)
- Brakes, 4-wheel antilock, front and rear disc
- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth
- Transmission, Allison 1000 RDS 6-speed automatic. PTO not available.
- Wheels, 19.5" x 6", steel
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead
Specifications
| Body | Class 5 Gvw 16001 - 19500 |
|---|---|
| Cab Type | STANDARD CAB |
| Category | Box Truck - Straight Truck |
| Make | CHEVROLET |
| Odometer | 37 |
| Passenger Doors | 2 |
| Stock Number | SSR00927 |
| Veh Type | New |
| Vin | 54DEEW1D9SSR00927 |
| Year | 2025 |
| Upfit Body Type | BOX TRUCKS |
|---|---|
| Upfit Make | MARTIN'S |
| Upfit Model | Martin's Standard Box Truck Body |
| Cylinders | 8 |
|---|---|
| Engine Manufacturer | Chevrolet |
| Engine Size | 6.6L |
| Fuel Type | Gasoline |
| Drive Train | Rear Wheel Drive |
|---|
| Gross Vehicle Weight Rating | 19500 |
|---|---|
| Item Weight | 16,001 - 19,500# |
| Colour | WHITE |
|---|---|
| Interior Color | CLOTH |
Please confirm all features with dealer.
